Understanding HAWK Signals (Hybrid Beacons) for Your Test

HAWK Signals (Hybrid Beacons)

In efforts to enhance pedestrian safety at crosswalks, especially at mid-block locations and intersections without traffic signals, many cities across the United States have adopted a specialized traffic control device known as the HAWK signal, short for High-Intensity Activated crossWalK beacon.

In some States it is also referred to as a Pedestrian Hybrid Beacon (PHB)

This unique system provides a safer way for pedestrians to cross busy roadways while minimizing traffic disruption.

What Is a HAWK Signal?

Unlike standard traffic lights, a HAWK signal remains dark until activated by a pedestrian.

It is typically installed at intersections or mid-block crossings where pedestrian traffic is significant but does not warrant a full traffic signal.

Once a pedestrian pushes the crossing button, the HAWK signal initiates a light sequence to control vehicular traffic and allow for a safe pedestrian crossing. (Wikipedia)

Purpose and Benefits

HAWK signals are designed to:

• Improve pedestrian safety, particularly in areas with high foot traffic or where there have been frequent pedestrian-vehicle collisions.
• Increase driver compliance with crosswalk laws, as the flashing and solid red lights command more attention than standard crosswalk signs.
• Reduce unnecessary traffic delays, since the signal is only activated when needed.
• Provide a cost-effective alternative to full traffic signals, especially in areas that do not meet the traffic volume criteria for traditional signals.

According to studies by the Federal Highway Administration (FHWA), HAWK signals can reduce pedestrian crashes by up to 69%.

Signal Sequence: What to Expect

The HAWK signal uses a distinct light pattern that both drivers and pedestrians need to understand:

For Drivers:

1. Dark Signal (No lights): The signal is inactive. Drivers may proceed as usual.
2. Flashing Yellow: A pedestrian has activated the signal. Drivers should slow down and prepare to stop.
3. Solid Yellow: Drivers must stop if it is safe to do so, just like a normal yellow traffic light.

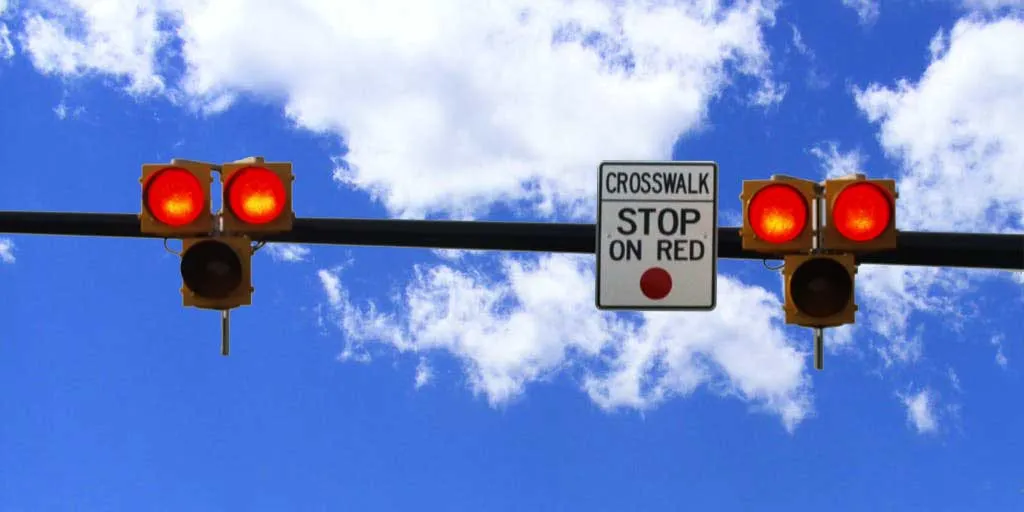

4. Solid Red: Drivers must stop. Pedestrians have the right of way and are crossing.
5. Alternating Flashing Red: Drivers must come to a complete stop. If the crosswalk is clear of pedestrians, they may proceed with caution.
6. Dark Signal: The cycle ends, and the signal goes dark until reactivated.

For Pedestrians:

1. Press the button: This activates the beacon.
2. Wait for the WALK signal: It’s unsafe to cross until the pedestrian signal shows a walking figure.
3. Cross with the WALK signal: When the signal is white (walking person), cross with caution.
4. Don’t start walking on the flashing hand: If the signal begins flashing (a hand symbol with a countdown), don’t begin to cross; if you’re already in the crosswalk, continue to the other side.

Check What You Have Learned

1 / 9

Which light will follow a signal showing steady red lights?

Solid yellow

Green

No light (Signal turns off)

Flashing red

After a steady red, the signal typically changes to flashing red.

2 / 9

If a HAWK signal shows flashing red lights and no pedestrians cross the street, you should:

Stop and proceed if clear

Drive through without stopping

Wait for a green signal

Turn around

After stopping, you may proceed if the crosswalk is clear.

3 / 9

Until activated by a pedestrian, a HAWK signal will:

Show flashing yellow

Display green

Remain dark

Cycle through lights

The signal stays dark (inactive) until someone activates it.

4 / 9

What follows the alternating flashing red lights?

Signal turns off

Solid yellow

Steady red

Green light

The signal turns off, and normal traffic flow resumes.

5 / 9

A HAWK signal with alternating flashing red lights means:

Proceed without stopping

Slow down and yield

Stop and wait for green

Stop and proceed when safe

You must stop and proceed only when safe.

6 / 9

What does a HAWK signal with a steady red light mean?

Stop and proceed if clear

Proceed with caution

Yield and continue

Stop and remain stopped

It indicates that drivers must come to a complete stop.

7 / 9

What follows the flashing yellow lights?

Solid yellow

Flashing red

Green

Steady red

It transitions to a solid yellow, warning drivers to prepare to stop.

8 / 9

A HAWK signal will show a circular green light:

After flashing red

In no situation

During normal operation

At night

HAWK signals do not display green lights; they are designed only for pedestrian crossing.

9 / 9

If a HAWK signal displays a steady red light and no pedestrian is in your path, you should:

Proceed immediately

Speed up

Remain stopped

Turn on hazard lights

You must remain stopped until the light changes or flashing red appears.

Your score is

The average score is 87%

Restart quiz

Key Takeaways

• HAWK signals bridge the gap between pedestrian needs and traffic flow.
• Understanding the unique signal pattern is essential for both drivers and pedestrians.
• These signals enhance visibility and safety, particularly in busy urban areas or near schools and parks.

By increasing awareness and understanding of how HAWK signals work, both drivers and pedestrians can help create safer, more walkable communities.

As more cities adopt this technology, it’s vital that all road users stay informed and alert when approaching these specialized crosswalks.
